Build your own personal cloud storage

Build your own personal cloud storage with Nextcloud and Raspberry Pi

Posted by Shadly on October 26, 2021

What is Nextcloud

Nextcloud is a suite of client-server software for creating cloud file storage. It is basically a free and open source version of google drive. It offers some really nice features. After Google announced that Google Photos will no longer allow unlimited photo storage at high-quality from June 1, 2021, I decided to give Nextcloud a try. Here I will be sharing my experience on how I built my own personal cloud storage with Nextcloud and Raspberry Pi 3 Model B.

Right Image file for Raspberry Pi 3 Model B

Nextcloud have a nice project called NextcloudPi for Raspberry Pi devices. At first I tried their official images from here . But somehow they didn’t boot on my Raspberry Pi 3 Model B. So grabbed the source code from here and built the img file for my device.

Build NextcloudPi for Raspberry Pi 3 Model B

1
2
3
4
sudo apt-get --allow-releaseinfo-change update
git clone https://github.com/nextcloud/nextcloudpi.git
cd nextcloudpi
build/build-SD-rpi.sh

After the build is finished you will find the img file in the tmp folder. Write the image in your SD card.

Setting up Nextcloud on Raspberry Pi

To connect to wifi, enable SSH and do other setting just type in

1
sudo raspi-config

To install Nextcloud :

1
curl -sSL https://raw.githubusercontent.com/nextcloud/nextcloudpi/master/install.sh | sudo bash

This will take some time to download and install everything. After it is installed get the IP of your Raspberry Pi device and check if the IP is accessible from your local network.

1
ifconfig

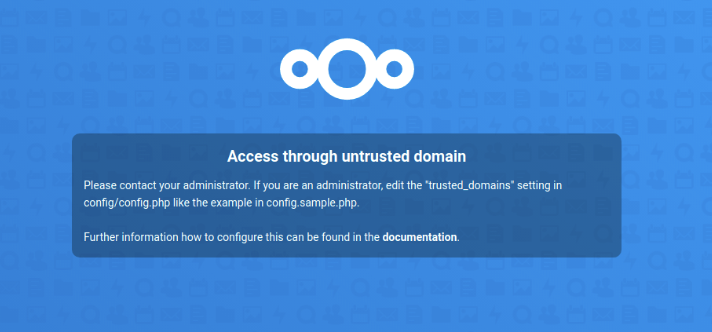

Access through untrusted domain

Untrusted Domain

After you reach your device form your browser you will most likely get this error. To get through this, you need to add trusted domain in your config.php file. Edit this file and add your device’s IP to the trusted domain list.

1
2
sudo cd ../../var/www/nextcloud/config
nano config.php

Now you can reach your Nextcloud.

Changing default password of the Nextcloud

There is a nice text based interface tool for configuring NextcloudPi.

1
sudo ncp-config

Here you can enable the web interface if it is not already enabled. Change the password for the default user ‘ncp’. Now try to login to your cloud. If everything works fine you should be now able to login to your Nextcloud.

Add your External USB Storage

1
sudo mkdir /media/USBdrive

Now you have to run the wizard from

1
https://your_raspi_ip:4443/wizard/

Navigate through the options and setup your external storage.

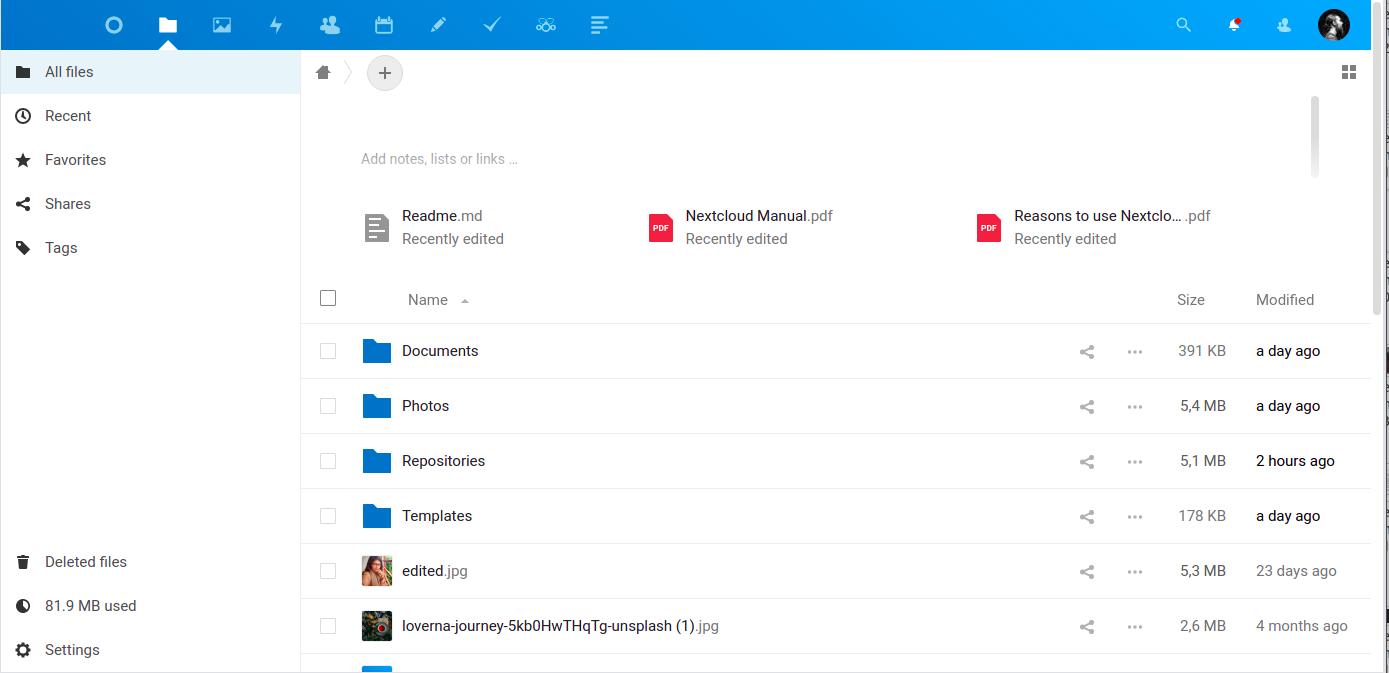

Enjoy Nextcloud

Now enjoy your free unlimited cloud storage.
